SIMPLY HIGH PERFORMANCE.

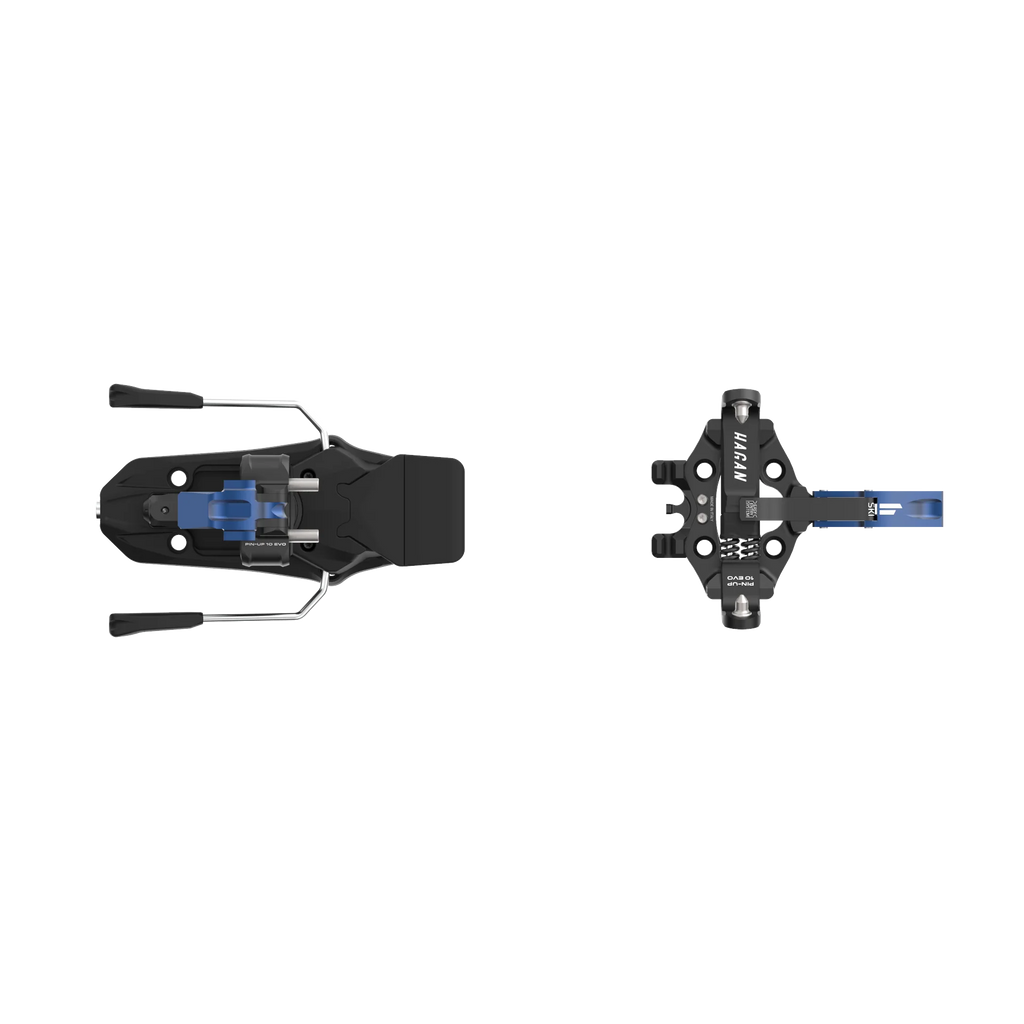

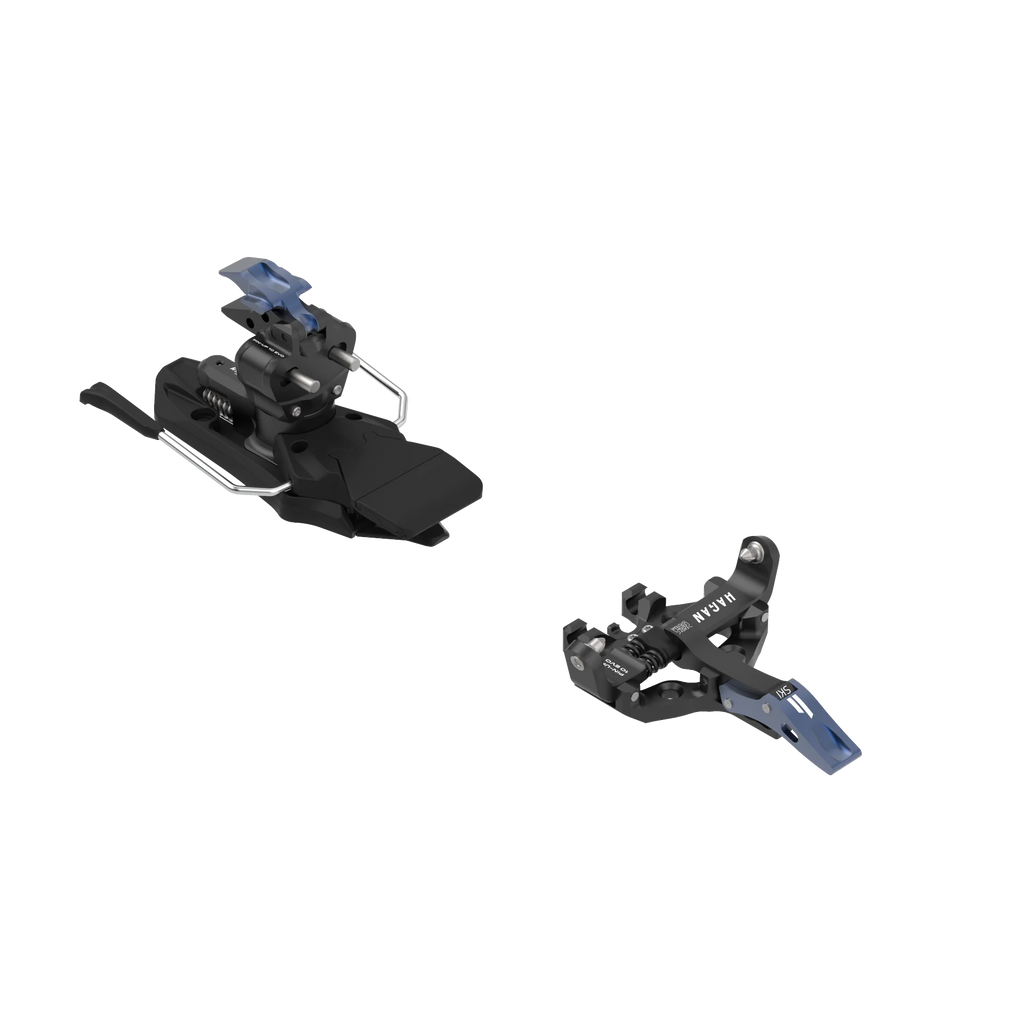

The Pin Up 10 EVO is made for HAGAN in partnership with ATK in Italy. HAGAN partnered with ATK, well respected for quality, craftsmanship and functionality, to bring what we feel are their best products to North America. The Pin Up 10 EVO is identical to the ATK RT10 EVO.
HAGAN EVO bindings, with automatic brake retraction! The EVO brake system is available on the new Core 12 EVO, Pin Up 8 EVO and Pin Up 10 EVO.
The Pin Up 10 updates the popular Pure 10, now evolved with EVO system brakes and dual Magneto heel lifters.
While the push pin system is effective (and still available with the lower cost Pure 8 and Pure 10), the automatic brakes are much easier to use. There is another advantage of the new brakes - and it is a big and important one. You can't forget to release the brakes before the descent. Switching into descent mode automatically puts the brakes into "ready" mode. If you descend on the push pin version but forget to first push the pin to release the brakes ($#it happens) you will have carried up brakes that do absolutely nothing in case of a crash. With the Pin Up 10, the brakes are always ready to deploy in descent mode, no matter how distracted or forgetful you are.
- Easy one-handed operation. On other bindings you need to hold down the brakes with one hand while pushing a pin or turning the heel tower with the other.
- Brake retraction for climbing is automatic when you step down. There is no need to push down the brakes with your hand.
- Dual lifters means no twisting to switch between flat, medium and high climbing heights
- You can't forget to release the brakes for the descent!
The revolutionary Pin Up 10 Evo binding outperforms standard U-Spring tech bindings for a better skiing, more efficient, and hassle-free backcountry experience. Unlike other tech bindings, the brakes are ingeniously held in retracted position by a separate mechanism, not by the heel tower itself. So the heel tower is light, not having to be bulked up to hold down the brakes. The Pin Up 10 Evo combines several ingenuous performance innovations:
- extremely solid boot/ski connection
- no torsional movement
- 20mm length adjustment
- Elastic Response System
- precise release and great descending feel
WEIGHT: 305 grams.
REVOLUTIONARY EVO SKI-BRAKE: incredibly light and easy to operate. Twist the heel to climbing and the brakes retract just by stepping in! See the short videos for brake operation.
ELASTIC RESPONSE SYSTEM:an elastic sliding system in the heel allows unrestrained flex of the ski during compression and excellent skiing performance.
SKI BRAKE ELASTIC SLIDE:integrated in the ski-brake pad to keep the lateral release value of the binding fixed.
SKI BRAKE: included, with sizes 75, 86, 91, 97, 102, 108 and 120 mm to provide the perfect fit with any ski model.
HEEL FLAP WITH RISER: intuitive heel flap system provides 3 different walking modes: FLAT MODE, + 36 mm and +50 mm.
CAM HEEL RELEASE SYSTEM® (Adjustable Release 3-8): a cam system which drives the Vertical release (My) of the binding in case of a fall. The cam system is extremely precise and reliable, and at the same time very light and small.
ROTATIONAL SYSTEM (Adjustable Release 3-8): this patented system provides the side release (Mz) adjustment.
20 mm ADJUSTMENT PLATE: integrated in the heel part enables fast adjustment in case of boot substitution (up to 2 full sizes).
INTEGRATED CRAMPON HOOKS ®: the included and removable crampon hooks integrate into the base of the toe piece for extreme rigidity and lightness!!
MATERIALS: Aluminum alloy, Injection-molded POM thermo-plastic, Stainless steel
