Hagan

Core 12 Pro Binding Freeride Spacer

$99.99

SUPERIOR EDGE CONTROL!

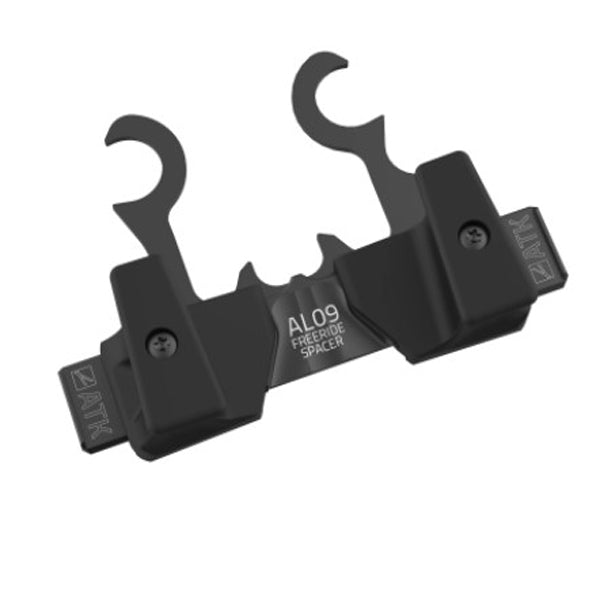

    Toe pieces on tech bindings provide more stiffness and precision than alpine binding toe pieces. The same isn't true for heel pieces: on tech bindings, the boot sole cannot be in touch with the ski because boots have different sole thicknesses. Until now! The ATK AL09 FreeRide Spacer eliminates the performance gap between tech and alpine bindings – providing astonishing downhill performance.

    Get the most from your equipment in all skiing conditions. Torsional and vertical movement (“slop”) common to lesser tech bindings, already minimized by our ROTATIONAL CAM SYSTEM® heel, are now entirely eliminated. Ski with edge control not achievable in other tech bindings.

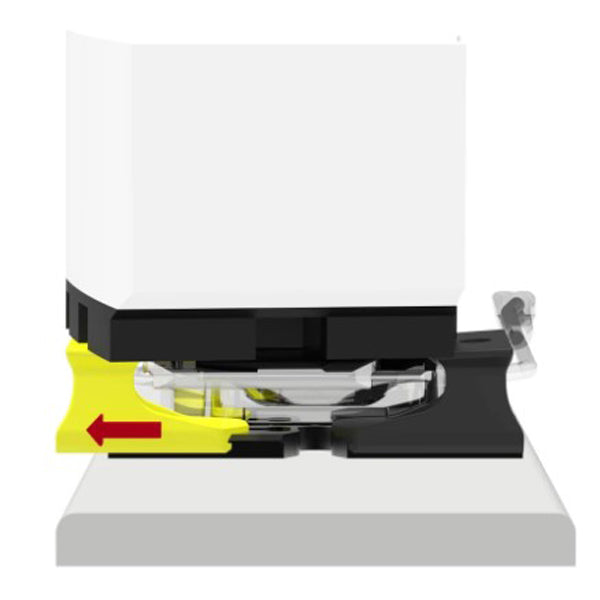

    The spacer eliminates the gap between the sole of the boot and the ski/binding, reducing stress — especially from big hits –– on the boot/binding interface by directly transferring force to the ski instead of the binding pins.

    Two elastic slide anti-friction pads grant proper side release when the spacer is loaded during jumps or compressions. Customize the spacer height with the provided washers to perfectly fit any boot sole. When properly calibrated, lateral release is not altered in any way.

    The Freeride Spacer can be installed with HAGAN Core 12 Pro and Boost 12 bindings as well as ATK R12, FR14 and Front 12 bindings. To add the stomp plates to already installed bindings, remove the binding, install the spacer and reinstall the binding with fresh glue and the same screws. No new screw holes!



    Works with:

    • Hagan Core 12 Pro
    • Hagan Boost 12
    • ATK R12/Raider 12
    • ATK FR14/Freeraider 14
    • ATK Front 12
    • WEIGHT: 29 grams each
    • MADE FOR: Free touring
    • MATERIALS: DELRIN 100 BK602
    • COLORS: Black
    • CONTAINS: 2 freeride spacers (for two bindings) and 2 sets of shims

    Installation and Warranty - Install the shims that leave a very slight gap between the stomp plates and your boot when the boot is unweighted. Enough gap to slide a piece of paper between the boot and spacer in the unweighted state. This will result in a solid connection between the boot and spacers when weighted, without putting too much force on the spacers and interfering with snapping into the heel pins. Because functioning and durability is very dependent on proper set up, the AL09 spacers are not warrantable, but can be replaced singly.
